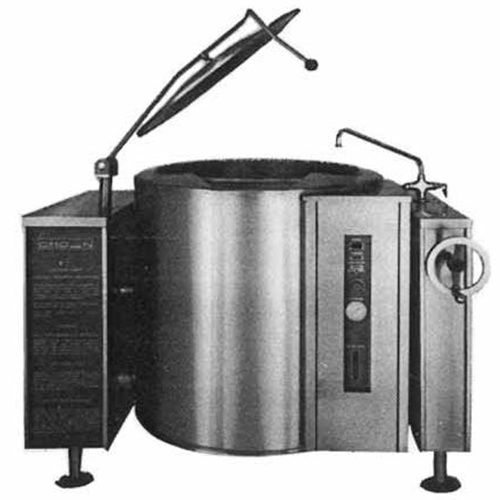

Entree Solaris GLT-20-K 20 GAL TILTING GAS KETTLE 2/3 STEAM JACKETED 316 LINER

Details

Entree Solaris GLT-20-K gas fired, self-contained, fully insulated, steam jacketed kettle, ASME Code stamped, National Board Registered, AGA, CGA and NSF certified for operation up to 50 PSI. A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle. The jacket enclosure shall contain factory sealed distilled water. The kettle interior on models 20 through 40 shall be stainless steel, type 316 for high acid content cooking. The kettle interior on 60 gallon models shall be type 304 stainless steel. Kettle exterior is fully insulated. The bottom of the kettle shall be of hemispherical design for superior heat circulation. The recessed control panel is located on the front right side of the unit, in full view of the operator and easy to use. Standard controls include direct immersion thermostat for temperature control from 165°F to 275°F (74°C to 135°C), water sight glass, cooking light, pressure gauge and electronic ignition with ignition indicator light. Safety features include low water shut off with indicator light, pressure switch, pressure relief valve and 100% safety gas shutoff valve.
The kettle shall pivot on trunnions connected to the tilt mechanism and control consoles. The tilt mechanism shall allow the kettle to tilt past 90° forward for complete emptying. The console shall be drip proof, stainless steel clad and shall be supported on all welded 1-5/8" (41 mm) stainless steel legs fitted with flange adjustable feet for securing to the floor.
